SIDE ENTERING AGIATORS

Side Entering Agitators are most frequently used in Pulp & Paper Industry and Chemical Industry. The drive unit is located beside the closed or open tank, and rotates the impeller by means of a horizontal shaft with sealing through the tank wall.
    Rotating speed plus diameter of the impeller are chosen by INDUTEC to fulfil the required process results for each application.
    The INDUTEC product range features belt transmissions, gear drive transmissions and special design transmissions when required by the customer.

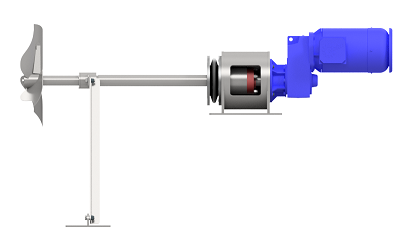

AM-11 V-belt Drive


100 - 350 rpm
1.1 - 75 kW
Suitable for
Volume:  2 - 500 m³

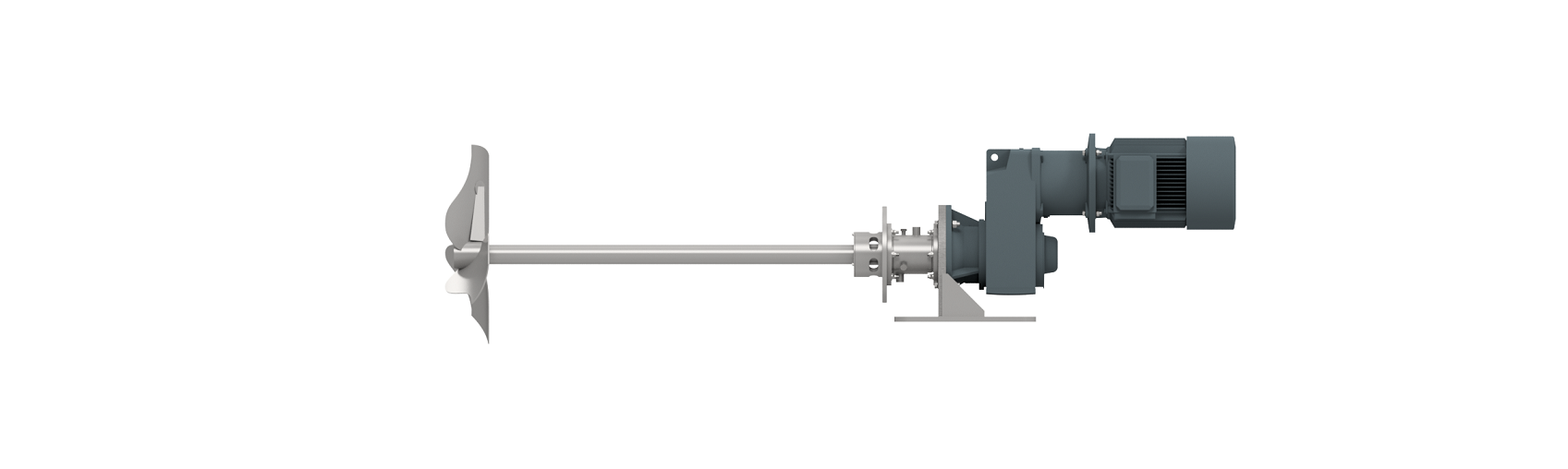

AM-15 Helical Bevel Gear Drive

150 - 225 rpm
55 - 260 kW
Suitable for
Volume: 50 - 500 m³

AM-12 V-belt Drive

100 - 350 rpm
75 - 260 kW
Suitable for
Volume:  50 - 500 m³

AM-16

Magnetic Coupling Drive

AM-13 V-belt Drive

100 - 350 rpm
5.5 - 75 kW
Suitable for
Volume:  50 - 500 m³

AM-14 Helical Gear Drive

150 - 225 rpm
55 - 260 kW
Suitable for
Volume: 50 - 500 m³
